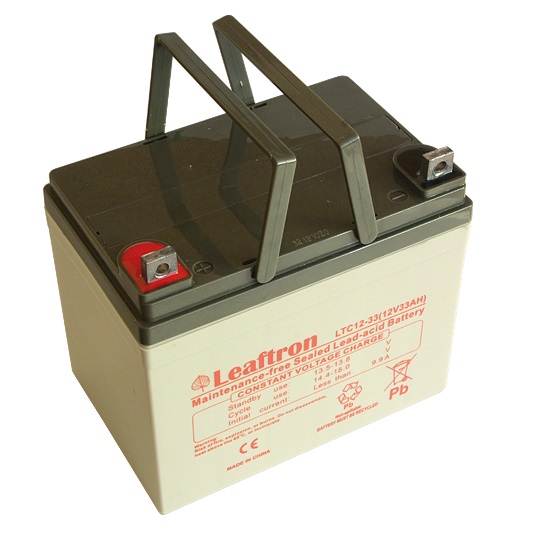

Leaftron LTC12-33 battery (12V-33Ah)
The battery is designed for cyclic operation in general applications. It is ideal for use as a battery for echo sounders, as a hotel battery for campervans or trailers or for specialised equipment such as UPS, SSWIN, fire-fighting equipment
It can withstand 2,000 full discharge cycles or 5 years of buffer operation. LTC series batteries are maintenance-free, sealed, VRLA and AGM technology.
Self-discharge: LTC series batteries can be stored for up to 6 months at 25°C. A recharge must take place after this period. For higher temperatures the interval will be shorter.
VRLA (Valve Regulated Lead-Acid) - Sealed, maintenance-free battery. Has built-in safety valves to drain excess gases in the event of overcharging the battery.
Read more about VRLA technology...
AGM (Absorbed Glass Mat) - The battery separators are made of glass fibre soaked in electrolyte.
Read more about AGM technology...
Key features of the battery
- Maintenance-free
- Resistant to deep discharge
- Tight
- They can work in any position
- Stable discharge current
- Withstand 2,000 full cycles or 5 years of buffer operation
Application
- Fishfinders
- Boats
- Campers
- Trailers
- Backup power supply systems
- UPS
- Electricity systems
- Emergency lighting
- Railway and aviation signalling
- Power supply for telephone exchanges
- SSWIN alarm systems
- Fire protection systems
- Automation and security
- Power supply for communication systems
Technical data:
Voltage
12 V
Capacity
33 Ah
Maximum discharge current
495 A / 5 sec.
Internal resistance
approx. 11.0 mΩ
Length
151 mm
Width
98mm
Height
95 mm
Overall height (including connectors)
101 mm
Weight
11.2 kg
Connector type
M6
Housing material
ABS
CAUTION! - Do not charge this battery with an ordinary charger. VRLA batteries must be charged with a dedicated charger
